ultrasonic.c File Reference

#include <esp_idf_lib_helpers.h>
#include "ultrasonic.h"
#include <freertos/FreeRTOS.h>
#include <freertos/task.h>
#include <esp_timer.h>
#include <ets_sys.h>

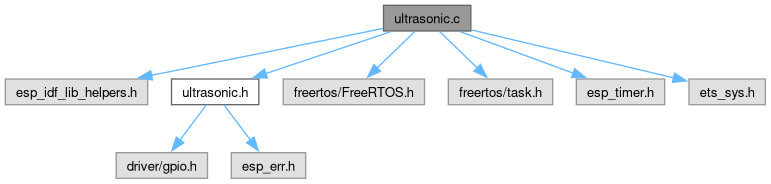

Include dependency graph for ultrasonic.c:

Macros
#define	TRIGGER_LOW_DELAY   4
#define	TRIGGER_HIGH_DELAY   10
#define	PING_TIMEOUT   6000
#define	ROUNDTRIP_M   5800.0f
#define	ROUNDTRIP_CM   58
#define	SPEED_OF_SOUND_AT_0C_M_S   331.4
#define	timeout_expired(start, len)
#define	CHECK_ARG(VAL)
#define	CHECK(x)
#define	RETURN_CRITICAL(RES)

Functions
esp_err_t	ultrasonic_init (const ultrasonic_sensor_t *dev)
	Init ranging module.
esp_err_t	ultrasonic_measure_raw (const ultrasonic_sensor_t *dev, uint32_t max_time_us, uint32_t *time_us)
	Measure time between ping and echo.
esp_err_t	ultrasonic_measure (const ultrasonic_sensor_t *dev, float max_distance, float *distance)
	Measure distance in meters.
esp_err_t	ultrasonic_measure_cm (const ultrasonic_sensor_t *dev, uint32_t max_distance, uint32_t *distance)
	Measure distance in centimeters.
esp_err_t	ultrasonic_measure_temp_compensated (const ultrasonic_sensor_t *dev, float max_distance, float *distance, float temperature_c)
	Measure distance in meters with temperature compensation.
esp_err_t	ultrasonic_measure_cm_temp_compensated (const ultrasonic_sensor_t *dev, uint32_t max_distance, uint32_t *distance, float temperature_c)
	Measure distance in centimeters with temperature compensation.

Detailed Description

ESP-IDF driver for ultrasonic range meters, e.g. HC-SR04, HY-SRF05 and the like

Ported from esp-open-rtos

Copyright (c) 2016 Ruslan V. Uss uncle.nosp@m.rus@.nosp@m.gmail.nosp@m..com

BSD Licensed as described in the file LICENSE

Macro Definition Documentation

CHECK

#define CHECK

(

x

)

Value:

do { esp_err_t __; if ((__ = x) != ESP_OK) return __; } while (0)

CHECK_ARG

#define CHECK_ARG

(

VAL

)

Value:

do { if (!(VAL)) return ESP_ERR_INVALID_ARG; } while (0)

RETURN_CRITICAL

#define RETURN_CRITICAL

(

RES

)

Value:

do { PORT_EXIT_CRITICAL; return RES; } while(0)

timeout_expired

#define timeout_expired	(		start,
			len )

Value:

((esp_timer_get_time() - (start)) >= (len))
